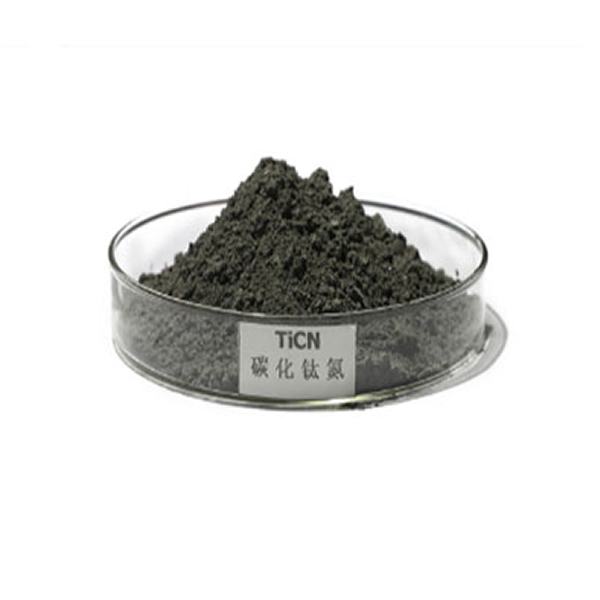

Titanium Carbonitride Powder
Description
CAS #:12627-33-7
Appearance: gloss black powder
Chemical Characteristics
Grade |
| TiCN55 | TiCN46 | TiCN73 |
Main chemical composition% | Ti | balance | balance | balance |
N | 10.8-11.8 | 12.0-13.5 | 6.9-7.7 |
T.C | 9.5-10.5 | 8.0-9.5 | 13.1-13.9 |
F.C | <0.2 | <0.2 | <0.3 |
Impurity composition % max | O | 0.4 | 0.6 | 1.0 | 0.4 | 0.6 | 1.0 | 0.4 | 0.8 | 1.0 |
Fe | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Al | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Mn | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Si | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Ca | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
FSSS(um) | <4.0 | <1.5 | <1.0 | <4.0 | <1.5 | <1.0 | <1.0 | <1.5 | <1.0 |
The special requirement of size and chemical can be produced |
Product introduction:
Titanium carbonitride-gloss black powder, is a zero-dimensional ternary solid solutions powder, TiC and TiN is the basis of titanium carbonitride, has a face-centered cubic lattice of NaCl-type structure, at the same time ,it can form a solid solution powder with the TaC, NbC, and other metal carbides.Titanium carbonnitride is a single TiC of lattice, nitrogen atmos (N) occupies the original carbon atoms (C) position in the lattice forms complex compounds, percentage of carbon and nitrogen atoms in the TiCxNy there are two ideal types of modes, namely, TiC0.5N0.5 and TiC0.3N0.7.Due to the comprehensive system with TiC and TiN, TiCN, its hardness is higher than TiC and TiN and is therefore an ideal tool coating materials.Titanium carbonitride coating and substrate bond strength can be improved, while integrated with various materials.
Application
Titanium carbonitride combines the advantages of TiC and TiN, and has a high melting point, high hardness, wear resistance, oxidation, corrosion-resistant properties, and have good thermal conductivity, electrical conductivity, and chemical stability, widely used in cutting tools, powder metallurgy and metal ceramics.
Product technology performance
Metal ceramics made of titanium carbonitride has the following characteristics: hardness (HRA) up to 91-95, can achieve the levels of non-metallic hardness of ceramic tools;Has very good wear resistance and ideal ability against crater wear in high-speed cutting steel material at very low wear rate, 3-4 times higher wear resistance than WC base hard alloy;High heat resistance, high temperature hardness, high temperature strength and high temperature wear resistance is good, at 1100-1300 ℃ high temperature , it can be still cutting, the cutting speed is general 2-3 times than WC base hard alloy cutting ; has good chemical stability and high antioxidant capacity;Compared with the cemented carbide products, titanium carbonitride ceramics have high wear resistance, lower degree of oxidation, better thermal shock resistance performance, suitable for high-speed cutting tool material, can well control the geometry of the workpiece accuracy and tolerances, and have high quality finish, high feed speed; can achieve very good results when Micro-machining of carbon steel, stainless steel, alloy steel, and ductile iron.
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
Quality Assurance(including both Destructive and Non-Destructive)
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
