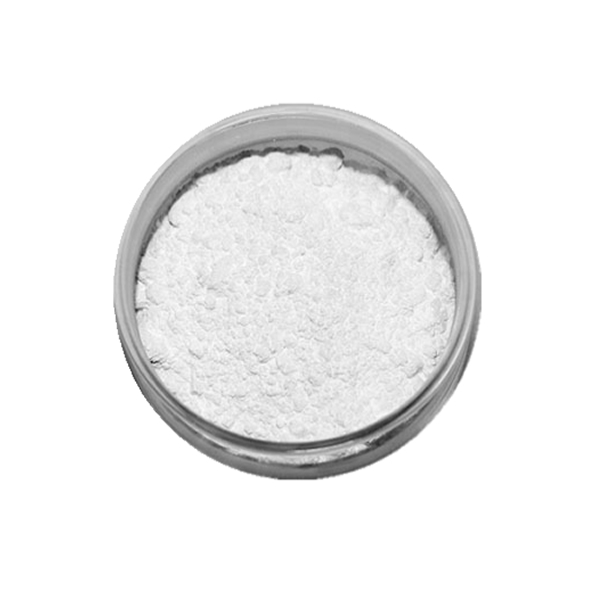

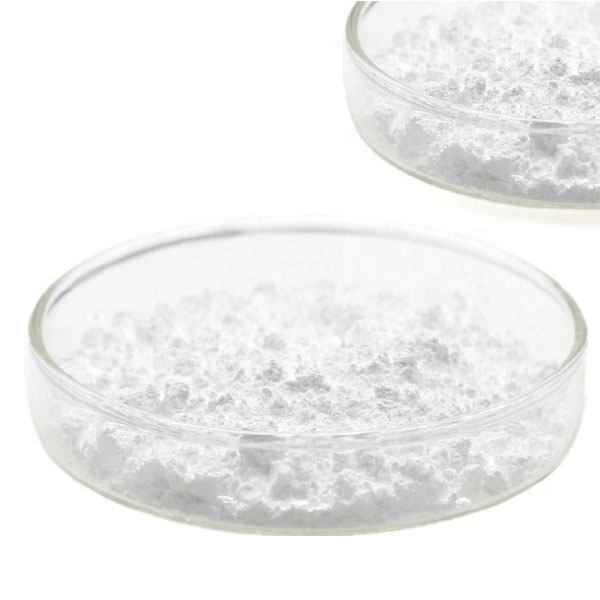

Niobium pentaoxide

1,Fast delivery
2,Factory price
3,Good quality

PRODUCT DETAIL

Niobium pentaoxide

Grade:FTa2o5-1,FTa2o5-2,FTa2o5-3,FTa2o5-4,FTa2o5-5

Grade		FTa2o5-1	FTa2o5-2	FTa2o5-3	FTa2o5-4	FTa2o5-5
Impurity content,%,max	Ta	0.03	0.08	0.3	0.8	0.15
	Ti	0.001	0.002	0.005	0.006	0.006
	W	0.003	0.005	0.01	0.04	0.01
	MO	0.002	0.003	-	-	0.002
	Cr	0.002	0.003	-	-	0.01
	Mn	0.002	0.005	-	-	0.03
	Fe	0.005	0.02	0.03	0.014	0.05
	Ni	0.005	0.01	0.02	-	0.005
	Cu	0.002	0.005	0.005	-	0.005
	Al	0.002	0.002	0.01	0.005	0.05
	Si	0.005	0.01	0.02	0.009	0.05
	As	-	-	0.005	-	0.05
	Sb	-	-	0.02	0.10	0.15
	Pb	-	-	0.005	-	0.005
	S	-	-	0.01	-	0.01
	P	-	-	0.01	-	0.01
	F	0.08	0.1	0.15	-	0.2
	Bi	-	-	-	-	0.003
	C	-	-	-	-	0.02
	Na	-	-	-	-	0.01
	Sn	-	-	-	-	0.01
Ignition loss %MAX		0.2	0.3	0.4	0.4	0.15
Fsss（μm）		-	-	-	1.5	-
Applications		For Niobium Power and Supercouductors	For Niobium power and Bars	For ceramic CaPacttors	For Niobium Carbide	For Alumiothermics Reaction
Sieve test size		250μm(-60目）

Special requirements to be agreed upon by the supplier and buyer.

undefined

Why Choose Us:

1. You can get the perfect material according to your requirement at the least possible price.

2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.

3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

4. e guarantee to give a response within 24hours(usually in the same hour)

5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.

6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Quality Assurance(including both Destructive and Non-Destructive)

1. Visual Dimension Test

2. Mechanical examining like tensile, Elongation and reduction of area.

3. Impact analysis

4. Chemical examination analysis

5. Hardness test

6. Pitting protection test

7. Penetrant Test

8. Intergranular Corrosion Testing

9. Roughness Testing

10. Metallography Experimental Test
