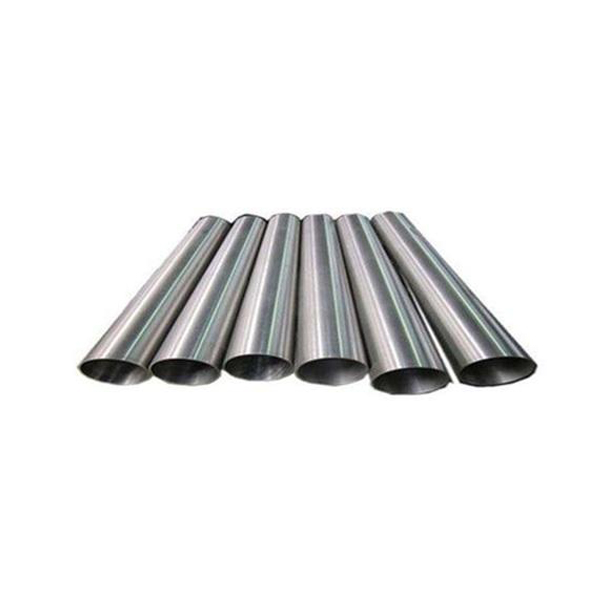

High Quality Niobium Metal Tube with CAS No 7440-03-1

PRODUCT DETAIL

Product Description

Index	Nb1	Nb2
Nb	Balance	Balance
Fe	0.004	0.01
Si	0.004	0.01
Ni	0.002	0.005
W	0.005	0.02
Mo	0.005	0.01
Ti	0.002	0.004
Ta	0.05	0.07
O	0.012	0.015
C	0.0035	0.005
H	0.0012	0.0015
N	0.003	0.005

Purity: ≥99.95% Specifications: Diameter: φ2.0-100mm

Thickness: 0.2-5.0mm

Length: 200mm-8000mm

Capillary size specifications: outer diameter Φ0.2 ~ Φ8mm, wall thickness T0.015 ~ 0.5mm.

Maximum accuracy: outer diameter Φ ± 0.003mm, wall thickness T ± 0.005mm, length L ± 0.05mm.

Appearance: Observed under a microscope, the inner and outer surfaces of the tube show a uniform metallic luster, without oxidation, hydrogen discoloration, scratches, deformation, burrs, etc.

Uses: Niobium and niobium alloy pipes have the characteristics of high melting point, corrosion resistance and good cold workability. They are widely used in the chemical industry, electronics industry, aerospace and aerospace industries. They are mainly used to make high-pressure sodium lamps, structural materials for aviation and aerospace engines, Chemical process reactors, heat exchanger tubes, reactor internal components, and jacket materials. Adding zirconium to niobium can significantly improve the oxidation resistance and strength of the material. At present, niobium-zirconium alloys are manufactured into capillaries for the supply of sodium lamps.

Why Choose Us:

1. You can get the perfect material according to your requirement at the least possible price.

2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.

3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

4. e guarantee to give a response within 24hours(usually in the same hour)

5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.

6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Quality Assurance(including both Destructive and Non-Destructive)

1. Visual Dimension Test

2. Mechanical examining like tensile, Elongation and reduction of area.

3. Impact analysis

4. Chemical examination analysis

5. Hardness test

6. Pitting protection test

7. Penetrant Test

8. Intergranular Corrosion Testing

9. Roughness Testing

10. Metallography Experimental Test
