Product Description

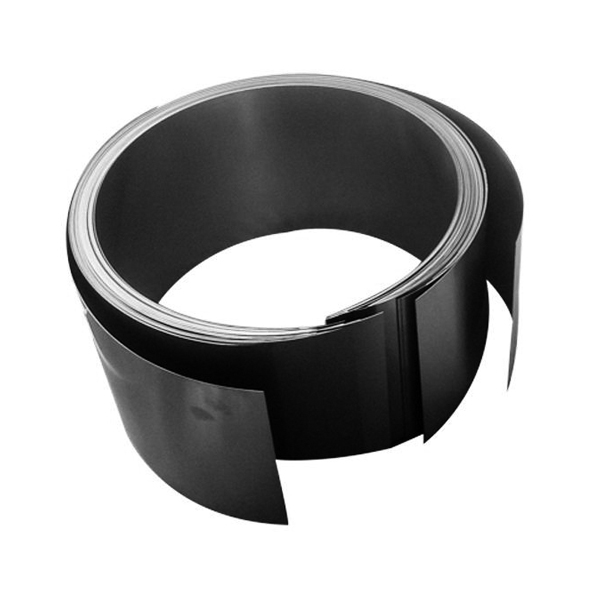

high purity 99.95% 0.03mm niobium foil suppliers
Product Name | High quality annealed niobium foil exw price |
Material | Pure niobium |
Grade | RO4200.RO4210,R04251,R04261 |
Standard | ASTM B393 |
Process | Cold rolled, Hot rolled, Extruded |
Characteristic | Melting point : 2468ºC / Boiling point : 4744ºC |
Density | 8.6 g/cm3 |
Product Features | Excellent Corrosion Resistance , Good resistance to effect of heat |
TABLE 1. Chemical Requirements:
Content, Max, Weight % |
Element | Grand: R04200 | Grand:R04210 | Grand:R04251 | Grand:R04261 |
Unalloyed Niobium | Unalloyed Niobium | (Reactor grade niobium-1% Zirconium) | (Commercial grade niobium-1% Zirconium) |
C | 0.01 | 0.01 | 0.01 | 0.01 |
O | 0.015 | 0.025 | 0.015 | 0.025 |
N | 0.01 | 0.01 | 0.01 | 0.01 |
H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
Fe | 0.005 | 0.01 | 0.005 | 0.01 |
Mo | 0.01 | 0.02 | 0.01 | 0.05 |
Ta | 0.1 | 0.3 | 0.1 | 0.5 |
Ni | 0.005 | 0.005 | 0.005 | 0.005 |
Si | 0.005 | 0.005 | 0.005 | 0.005 |
Ti | 0.02 | 0.03 | 0.02 | 0.03 |
W | 0.03 | 0.05 | 0.03 | 0.05 |
Zr | 0.02 | 0.02 | 0.8~1.2 | 0.8~1.2 |
Nb | Remainder | Remainder | Remainder | Remainder |
TABLE 2.Mechanical Requirements:
| Grade(UNS) | Annealed |
| Tensile strength min, psi (MPa) | Yield strength min,psi (MPa)(2%) | Elongation min, % (1 inch gage length) |
| R04200, R04210 | 18000 (125) | 10500 (73) | 15~20 |
| R04251, R04261 | 28000 (195) | 18000 (125) | 15~20 |
| R04220(RRR grade) | 14000 (95) | 7200 (50) | 30
|
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
Quality Assurance(including both Destructive and Non-Destructive)
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
